PROTEAN II xi 电泳槽可运行大型垂直电泳，用于多种分离，包括 SDS-PAGE、非变性电泳以及琼脂糖凝胶电泳等。 PROTEAN II xi 槽具有两种尺寸，最多可容纳四块* 16 x 16 cm 或 16 x 20 cm 凝胶。
优势特点
可使用手灌胶：灌胶架上的单螺纹夹可在全长玻板上均匀施加压力，防漏密封设计，无需封脂类或琼脂糖中央冷却芯可外接到循环水或冷却循环器，或灌装冷却剂作为散热器使用，只需 1.5 L 缓冲液就可以保证凝胶结果不会出现“微笑”现象
可选择两种长度的凝胶：16或20cm，根据凝胶长度选择相应的玻板、封边垫条、三明治夹等配件
使用 PROTEAN II 多板凝胶灌制器、495 型梯度仪和合适的对数活塞可灌制多种梯度胶。用胶夹便于大胶的操作
使用带凹口的玻板，可同时进行四块 16 x 16 cm 或 16 x 20 cm 手灌胶电泳（不建议用于 2-D 应用）
可选择磨砂玻板进行高分辨率的垂直琼脂糖核酸电泳
加样梳转换螺纹夹可将 PROTEAN II xi 加样梳从标准的 25 mm 孔深转变为 10 mm 孔深，并方便从凝胶中取出
应用于第二向电泳的 PROTEAN II IPG 转换组合套件
转换组合套件可扩展PROTEAN II xi 电泳槽的功能，如用于管式IEF凝胶和第二向的SDS-PAGE。可把 PROTEAN II xi 电泳槽转换为：
PROTEAN xi 2-D Cell — 使用配套组件和其他组件可转换用于 16 个 IEF 管式凝胶

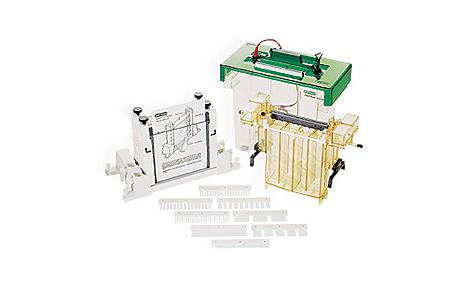

PROTEAN II XL Cell — 使用 可选的 PROTEAN II IPG 转换组合套件可用于 17cm IPG 胶条的双向电泳电泳槽包括带密封垫的中央致冷芯、下槽缓冲液室、带电缆线的电泳槽盖、2 套玻板、4 套三明治夹、上层缓冲液挡板、带有密封衬垫的灌胶架、气泡式水平仪、说明书。16cm 电泳槽带有用于16cm凝胶电泳的夹板。20cm 电泳槽带有用于 20cm 凝胶电泳的夹板。
订购信息
Catalog description
1651801 Large format vertical electrophoresis cell, 16 x 16 cm gel size, 4 gel Large format vertical electrophoresis cell, 16 x 16 cm gel size, 4 gel capacity, 2 sets of glass plates, 2 sets of sandwich clamps, casting stand, upper buffer dam, alignment card with leveling bubble; spacers and combs not included
1651802 Large format vertical electrophoresis cell, 16 x 16 cm gel size, 4 gel capacity, includes four 1.5 mm spacers, two 15-well combs, 2 sets of glass plates, 2 sets of sandwich clamps, casting stand, upper buffer dam, alignment card with leveling bubble
1651803 Large format vertical electrophoresis cell, 16 x 16 cm gel size, 4 gel capacity, includes four 1.0 mm spacers, two 15-well combs, 2 sets of glass plates, 2 sets of sandwich clamps, casting stand, upper buffer dam, alignment card with leveling bubble
1651804 Large format vertical electrophoresis cell, 16 x 16 cm gel size, 4 gel capacity, includes four 0.75 mm spacers, two 15-well combs, 2 sets of glass plates, 2 sets of sandwich clamps, casting stand, upper buffer dam, alignment card with leveling bubble
1651811 Large format vertical electrophoresis cell, 16 x 20 cm gel size, 4 gel capacity, spacers and combs not included
1651812 Large format vertical electrophoresis cell, 16 x 20 cm gel size, 4 gel capacity, includes four 1.5 mm spacers, two 15-well combs, 2 sets of glass plates, 2 sets of sandwich clamps, casting stand, upper buffer dam, alignment card with leveling bubble
1651813 Large format vertical electrophoresis cell, 16 x 20 cm gel size, 4 gel capacity, includes four 1.0 mm spacers, two 15-well combs, 2 sets of glass plates, 2 sets of sandwich clamps, casting stand, upper buffer dam, alignment card with leveling bubble
1651814 Large format vertical electrophoresis cell, 16 x 20 cm gel size, 4 gel capacity, includes four 0.75 mm spacers, two 15-well combs, 2 sets of glass plates, 2 sets of sandwich clamps, casting stand, upper buffer dam, alignment card with leveling bubble
1651815 Kit converts PROTEAN II xi cell into a tube gel IEF 2-D system; includes 2 tube gel adaptors, 24 glass tubes (1.5 mm ID, 180 mm length), gaskets, grommets, stoppers
1651834 Vertical electrophoresis system, includes electrophoresis cell with central cooling core, gel casting stand
技术参数
| PROTEAN II xi (16 cm) | PROTEAN II xi (20 cm) | PROTEAN II XL (20 cm) |
凝胶数 | 1–4 | 1–4 | 1–4 |
凝胶尺寸（宽 x 长） | 16 x 16 cm（手灌） | 16 x 20 cm（手灌） | 18.3 x 20 cm（手灌）
18.3 x 19.3 cm（预制） |
玻璃板尺寸（宽 x 高） | | | |
内板 | 20 x 16 厘米 | 20 x 20 厘米 | 20 x 20 厘米 |
外板 | 20 x 18.3 厘米 | 20 x 22.3 厘米 | 20 x 22.3 厘米 |
间隔器长度 | 18.3 cm | 22.3 cm | 22.3 cm |
典型上层缓冲液体积 | 350 ml | 350 ml | <SPAN style="FONT-SIZE: 8pt; FONT-FAMILY: Ar</body> |
